Description

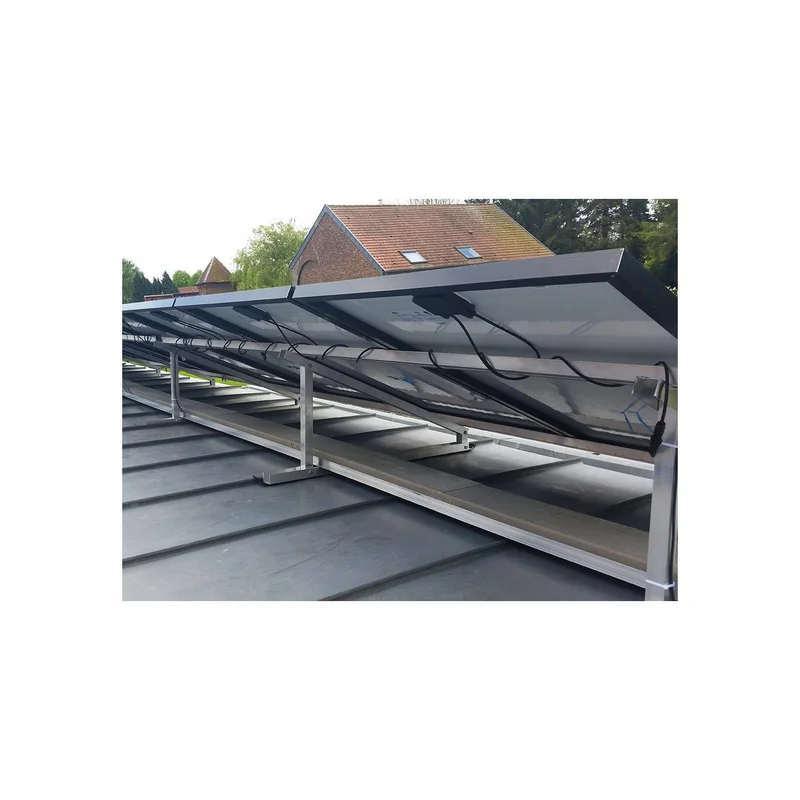

This kit contains the necessary equipment to attach your photovoltaic panels to an aluminum rail system placed on a flat surface.
Simply select in the options the number of panels arranged in portrait or the number of panels arranged landscape >> the contents of the fastening kit automatically adapts.
Attachment kit content
40×40 mm aluminum rail
Aluminium rail on which the solar panel is positioned. Custom rail available on request.
>> Learn more about the 40×40 rail
Junction for rail – 2 fastening bars
These 2 bars are used to solidly assemble 2 pieces of rail together without screws or tools! Simply insert the junction bars into the two pieces of rail to be assembled.
>> Learn more about the junction room
Large aluminum support (for portrait panel)
This triangular support is used to secure the aluminum rail used to support the solar panel.
>> Learn more about the great aluminum support
Small aluminum support (for landscape panel)
This small triangular support is used to secure the aluminum rail used as a support for the solar panel arranged in a landscape.
>> Learn more about the small aluminum holder
Middle clame – panel attachment
Clame for the interior fixing of photovoltaic panels. Height adjustable to the height of the frame of the solar panel: 35 – 50mm. Fixes on the aluminum rail with bolt and stainless steel nut (supplied).
option Height to choose depending on the height of the panel frame.
>> Read more about the middle clam
End clame – panel attachment
Clam for the exterior attachment of the panel. Available heights: 35mm – 40mm – 45mm – 47mm – 50mm. This clam is fixed on the aluminum rail with bolt and nut (supplied)
>> Read more about the end clam
How do I choose a kit that fits my panels?
The fastening kit is suitable for any installation. Thanks to its options, it adapts to the layout of your panels.
The fasteners are compatible with conventional panels.
1. Select the amount of portrait or landscape panels
Choose, by row, the amount of panels arranged in portrait or landscape.
Like what, the provision opposite requires 3x the Attachment Kit product:
> 1st kit for row 1: 3 portrait panels
> 2nd kit for row 2: 2 landscape panels
> 3rd kit for row 3: 2 landscape panels
2. Select the right clam for your panel
The clam is used to attach the panel to the aluminum rail. Its height must correspond to the thickness of the frame of your panel for it to be securely attached to the rail.
The heights of clams available: 35 – 40 – 45 – 47 – 50 mm
Detail of material provided based on the amount of panel
| Portrait panels | ||||||
| Number of panels | Rail (m) | Rail detail | junction | Large aluminum support | Middle clame | End Clame |
| 1 panel | 2 | (2 x 1.04m) | 0 | 2 | 0 | 4 |
| 2 panels | 4 | (2 x 2.10m) | 0 | 3 | 2 | 4 |
| 3 panels | 6 | (2 x 2.10m and 2 x 1.04m) | 2 | 3 | 4 | 4 |
| 4 panels | 8 | (4 x 2.10m) | 2 | 4 | 6 | 4 |
| 5 panels | 10 | (4 x 2.10m and 2 x 1.04m) | 4 | 5 | 8 | 4 |
| 6 panels | 12 | (6 x 2.10m) | 4 | 5 | 10 | 4 |
| 7 panels | 14 | (6 x 2.10m and 2 x 1.04m) | 6 | 6 | 12 | 4 |
| 8 panels | 16 | (8 x 2.10m) | 6 | 6 | 14 | 4 |
| 9 panels | 18 | (8 x 2.10m and 2 x 1.04m) | 8 | 7 | 16 | 4 |
| 10 panels | 20 | (10 x 2.10m) | 8 | 8 | 18 | 4 |
| 11 panels | 22 | (10 x 2.10m and 2 x 1.04m) | 10 | 9 | 20 | 4 |
| 12 panels | 24 | (12 x 2.10m) | 10 | 10 | 22 | 4 |
| 13 panels | 26 | (12 x 2.10m and 2 x 1.04m) | 12 | 11 | 24 | 4 |
| 14 panels | 28 | (14 x 2.10m) | 12 | 11 | 26 | 4 |
| 15 panels | 30 | (14 x 2.10m and 2 x 1.04m) | 14 | 12 | 28 | 4 |
| 16 panels | 32 | (16 x 2.10m) | 14 | 13 | 30 | 4 |
| 17 panels | 34 | (16 x 2.10m and 2 x 1.04m) | 16 | 13 | 32 | 4 |
| 18 panels | 36 | (18 x 2.10m) | 16 | 14 | 34 | 4 |
| 19 panels | 38 | (18 x 2.10m and 2 x 1.04m) | 18 | 15 | 36 | 4 |
| 20 panels | 40 | (20 x 2.10 m) | 18 | 15 | 38 | 4 |
| Landscape panels | ||||||
| Number of panels | Rail (m) | Rail detail | junction | Small aluminum support | Middle clame | End Clame |
| 1 panel | 3,4 | (2 x 1.80m) | 0 | 2 | 0 | 4 |
| 2 panels | 6,8 | (4 x 1.80m) | 2 | 3 | 2 | 4 |
| 3 panels | 10,2 | (4 x 1.80m and 2 x 1.60m) | 4 | 4 | 4 | 4 |
| 4 panels | 13,6 | (6 x 1.80m and 2 x 1.60m) | 6 | 5 | 6 | 4 |
| 5 panels | 17 | (8 x 1.80m and 2 x 1.60m) | 8 | 6 | 8 | 4 |
| 6 panels | 20,4 | (10 x 1.80m and 2 x 1.60m) | 10 | 7 | 10 | 4 |
| 7 panels | 23,8 | (10 x 1.80m and 4 x 1.60m) | 12 | 8 | 12 | 4 |
| 8 panels | 27,2 | (12 x 1.80m and 2 x 1.60m) | 14 | 9 | 14 | 4 |
| 9 panels | 30,6 | (14 x 1.80m and 4 x 1.60m) | 16 | 10 | 16 | 4 |
| 10 panels | 34 | (16 x 1.80m and 4 x 1.60m) | 18 | 11 | 18 | 4 |
| 11 panels | 37,4 | (18 x 1.80m and 4 x 1.60m) | 20 | 12 | 20 | 4 |
| 12 panels | 40,8 | (20 x 1.80m and 4 x 1.60m) | 22 | 13 | 22 | 4 |
| 13 panels | 44,2 | (22 x 1.80m and 4 x 1.60m) | 24 | 14 | 24 | 4 |
| 14 panels | 47,6 | (24 x 1.80m and 4 x 1.60m) | 26 | 15 | 26 | 4 |
| 15 panels | 51 | (26 x 1.80m and 4 x 1.60m) | 28 | 16 | 28 | 4 |
| 16 panels | 54,4 | (28 x 1.80m and 4 x 1.60m) | 30 | 17 | 30 | 4 |
| 17 panels | 57,8 | (30 x 1.80m and 4 x 1.60m) | 32 | 18 | 32 | 4 |
| 18 panels | 61,2 | (32 x 1.80m and 4 x 1.60m) | 34 | 19 | 34 | 4 |
| 19 panels | 64,6 | (34 x 1.80m and 4 x 1.60m) | 36 | 20 | 36 | 4 |
| 20 panels | 68 | (36 x 1.80m and 4 x 1.60m) | 38 | 21 | 38 | 4 |
The details of the rails are given as an indication and depend on the size of the panels (which varies the lengths of the rails).
