Description

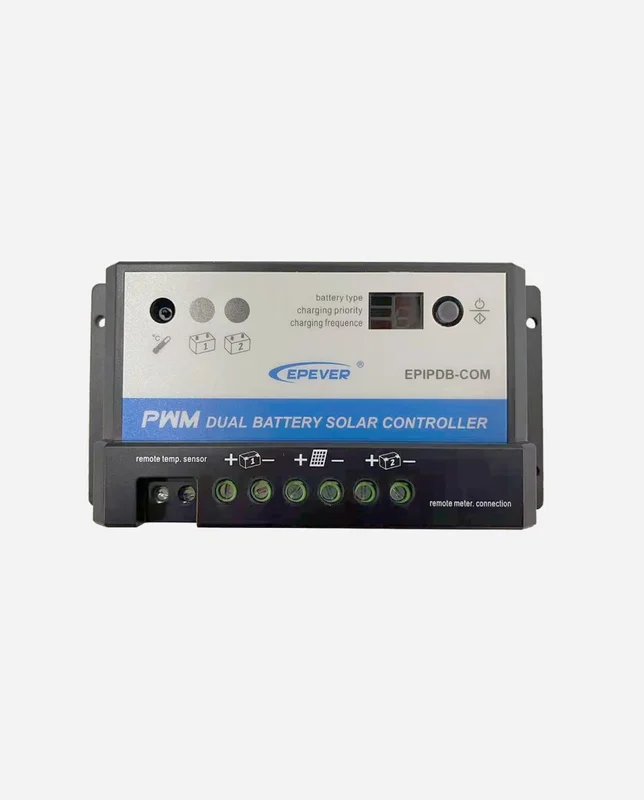

EPEVER®PWM Charge controller EPIPDB-COM 10A/20A 12/24V two batteries
Product Features
- RJ45 interface for optional remote display MT1
- Yield measurement with optional display
- PWM charge with temperature compensation
- Overload protection
- Deep discharge protection
- Overload and short circuit
- Battery charge and charge LED indicator
- Keeps the battery fully charged
- Prevents the battery from applying voltage to the solar system at night
- Polarity reversal protection for battery AND solar panel
- Automatic shutdown if the charging current exceeds the capacity of the regulator
- Automatic shutdown on overload of the consumer Output
- Automatic temperature compensation (ATC)
- LED indicates battery charge Level
- Automatic charging on / off, depending on the battery charge
- 3 battery types adjustable (acid, AGM, gel)
Technical specifications
| Model | EPIPDB-Com 12-24V 10A | EPIPDB-Com 12-24V 20A |
| SKU | 2522410 | 2522420 |
| EAN Code | 4260558571940 | 4260558570677 |
| Rated charge current | 10A | 20A |
| Rated load current | 10A | 20A |
| Nominal system voltage | 12V, 24V auto | 12V, 24V auto |
| Nominal PV power | 160W (12V) 320W (24V) | 320W (12V) 640W (24V) |
| DC input voltage | max. 12~18V by 12V and 24~37V by 24V | max. 12~18V by 12V and 24~37V by 24V |
| Shutdown (deep discharge protection) | 11V / 22V | 11V / 22V |
| Temperature | – 35°C to + 55°C | – 35°C to + 55°C |
| Protection | IP20 (interior) | IP20 (interior) |
| Dimension | 153 * 76 * 37 mm | 153 * 76 * 37 mm |
| Weight | 250 g | 250 g |
