Description

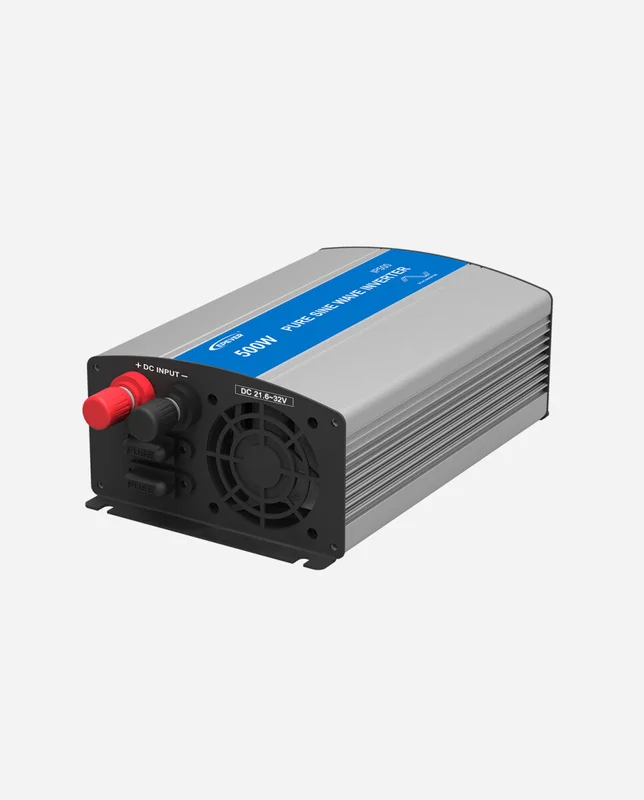

The EPEVER® IPower series represents a series of pure sine wave off-grid inverters, which can convert 12/24/48V DC into 220 / 230V AC. Industrial design, compared with the civilian design, has a wider operating temperature range (-20 ? ~ + 45 ?), greater reliability and higher efficiency. There are many advantages such as a concise and light appearance, easy installation and operation. The wide input voltage range is ideal for use in solar systems. The voltage transformer can be used in many areas, ideal for household emergency lighting, vehicle-mounted system and small and medium-sized power supplies, etc.
Special features
- Max. efficiency up to 95%
- Safe design with electrical insulation for input and output
- Adoption of advanced SPWM technology, pure sine output
- LED indicators for error status and working status
- Low idle consumption
- Input protection: Overvoltage and low voltage protection
- Output protection: Overload and short circuit protection
- Overheating protection: Temperature controlled ventilation; automatic shutdown in case of overheating
- Suitable for all types of electrical appliances
- do not support lithium battery
Technical specifications
| Manufacturer model | IP500-22 |
|---|---|
| EAN Code | 4260558570738 |
| Article number | 3200500 |
| Input rated voltage of the battery | 24VDC |
| Input voltage range | 21.6 ~ 32VDC |
| Fuse | 2 * 32VDC / 35A |
| Output voltage | 220VAC (± 5%) / 230VAC (-10% ~ + 5%) |
| Continuous power up to + 45 ? | 400W |
| Output power up to 15 min. | 500W |
| Efficiency | 92% |
| IP protection | IP20 |
| Operating temperature | -20 ? ~ + 45 ? |
| Dimension | 232.2 × 132 × 74.5mm |
| Weight | 1,4kg |
