Description
Main features
- Realize wireless monitoring function of solar controller and inverter
- Support mobile phone APP, plug and play, simple and convenient to set
- Use high performance, ultra-low power consumption Bluetooth dedicated chip
- Adopt Bluetooth 5.0 and BLE technology
- Fast communication, strong anti-interference ability
- No need of external power supply
- Communication distance up to 10 m
- Master reset adapter
Technical data

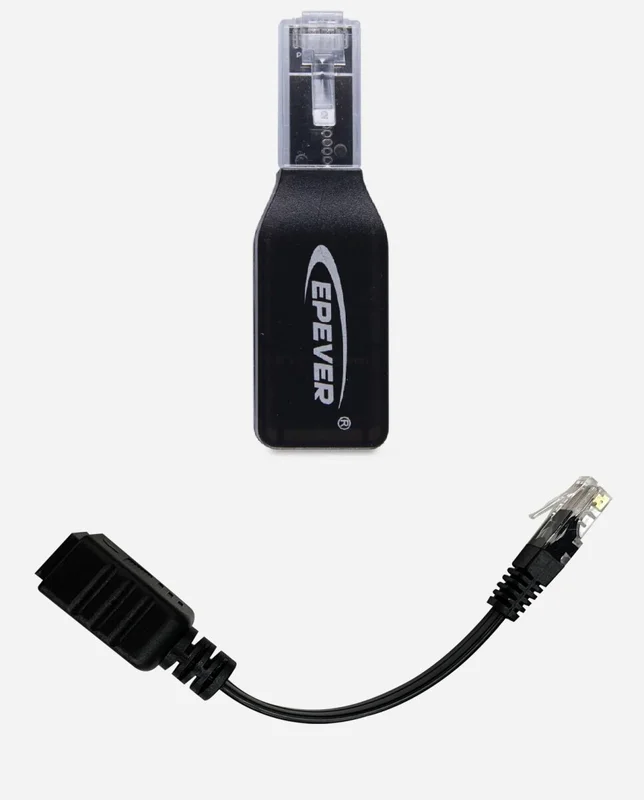

| Product | EPEVER-BLE-RJ45-D |
|---|---|
| Article number | 2000020 |
| EAN | 4260558570394 |
| Operating voltage | 5V ± 0.5V (powered by RJ45 connector) |
| Power consumption: average | 5 V @ 10 mA; peak value: 5 V @ 60 mA |
| Communication distance | ≤10m |
| Communication method | RS485 to Bluetooth |
| Connector port | RJ45 |
| Working temperature | -20℃~70℃ |
| Protection class | IP30 |
| Dimension | 63 x 19 x 13.8mm/2.48″ x 0.75″ x 0. |
| Weight | 8g |
