Description

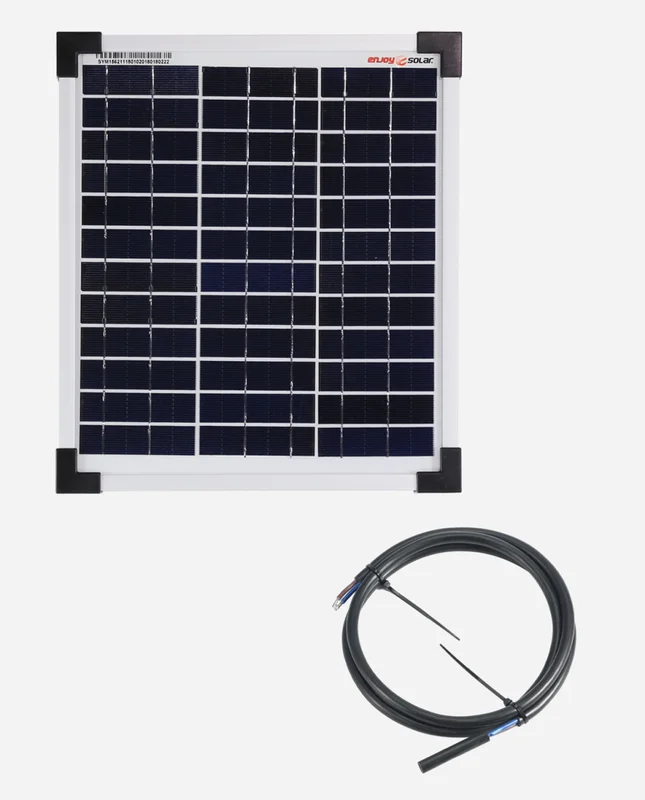

enjoysolar®Polycrystalline Solar panel 10W 12V
- TÜV certified
- high quality solar cells with 18% efficiency
- integrated bypass diode – minimized power loss during shading
- tempered safety glass surface with a waterproof coating
- unique extra robust frame in anodised aluminum
- Performance guarantee up to 10 years with 90% and up to 25 years with 80%
Technical specifications
| Model of manufacturer | Eco Line ES10P36 |
|---|---|
| EAN Code | 4260558570202 |
| Article No. | 1200010 |
| Max. power (Pm) | 10W* |
| Max. voltage (Vmp) | 18.1V |
| Max. current (Imp) | 0.56A |
| Open circuit voltage (Voc) | 22.3V |
| Short circuit current (Isc) | 0.6A |
| Operating temperatur | -45°C ~ +85°C |
| Cell | 36*Poly-Kristallin |
| Max. mains voltage | 1000VDC |
| Tolerance | +3% |
| Weight | 1kg |
| Dimension | 304* 270* 25mm |
*Values according to STC conditions (E=1000 W/sq.m, Tc = 25 ° C, AM = 1.5 )
enjoysolar®2 core solar cable 1m x 1mm²
enjoysolar® professional 2 core cable 1m x 1mm² provides a professional connection between the charge controller and the solar modules. The cable is ideal for enjoysolar® 5W, 10W and 20W solar panels. All components are crimped with specialist tools and have an optimal connection quality.
Technical specifications
- 1m x 1 mm² double insulated solar cable
- Outside diameter: 5mm
- Rated voltage: 300/500V
- Voltage withstand test: 2000V
- Rated temperature: -15 ° C ~ +70 ° C
- conductor resistance, at 20° C: 19.5Ω /km
- Conductor material: Bare copper
- Cable jacket material: PVC
- UV, ozone, water resistant
- suitable for wiring solar systems inside and outside of buildings
- 2 year manufacturer guarantee
