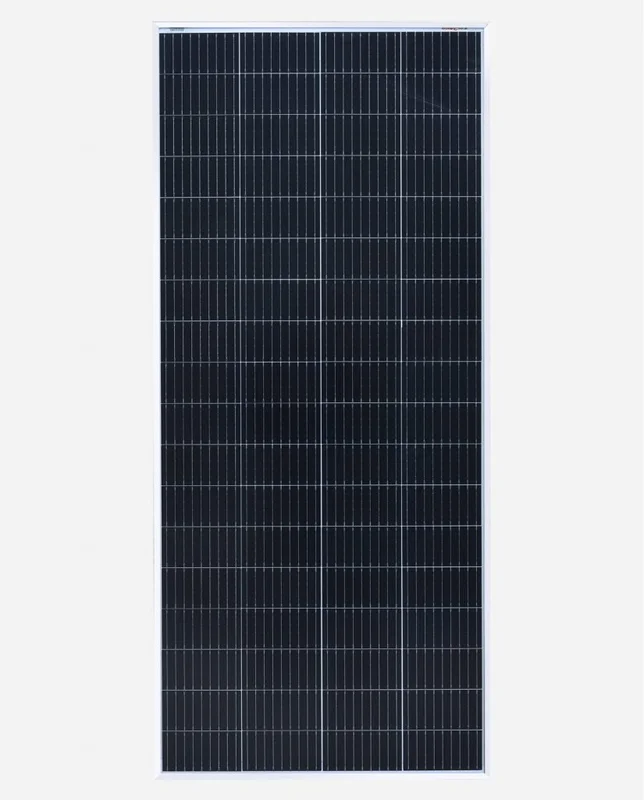

Description
Special features
- High operating voltage of 36V, perfect for 24V systems
- Structure with 158,75mm, 9-busbars monocrystalline PERC cells
- IP65 junction box with 90cm long 4mm² solar cable and MC4 connector
- Integrated bypass diode – minimized power loss when shaded
- Tempered ESG solar glass surface with weatherproof coating
- Unique frame in anodized aluminum
- TÜV certified
- Warranty of plus tolerance (+3%), power warranty up to 10 years with 90% and up to 25 years with 80%
Elect.rical characteristics
| Product code | Eco Line ES180M72 |
| Item number | 1130180 |
| EAN Code | 4260558572855 |
| Cells | Monocrystalline Perc |
| Max. power(Pmax) | 180W |
| Max. voltage(Vmp) | 39,2V |
| Max. current (Imp) | 4,6A |
| Open circuit voltage (Voc) | 47,2V |
| Short circuit current (Isc) | 4,88A |
| Temperature coefficient of Voc | -0.36%/K |
| Temperature coefficient of Isc | 0.05%/K |
| Temperature coefficient of power | -0.44%/K |
| Normal operating cell temperature | 44+/-2°C |
| Operating temperature | -40 ~ +85°C |
| Max. System voltage | 1000VDC |
| Power tolerance | 0 ~ +3% |
| Junction Box | Waterproof IP65,1000VDC |
| Bypass Diodes | 2 pcs |
| Module Dimension | 1480 * 670 * 35 mm |
| Net Weight | 10,9kg |
* Measured at standard test conditions: irradiance 1000 W/m², air mass 1.5 spectum, temperature 25°C, Electrical parameters vary by -5% to +5%
