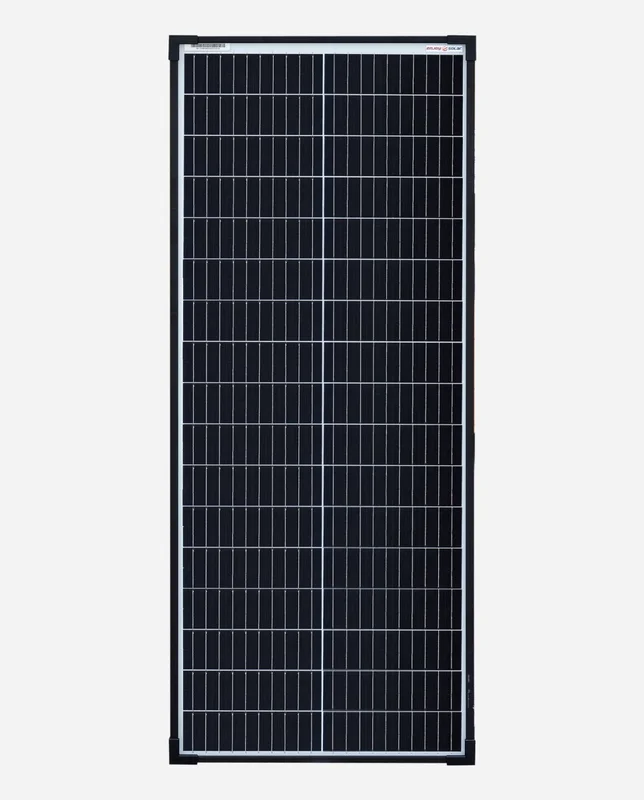

Description
The new generation of PV Module made of 182mm mono solar cells, which will be the trend of the foreseeable future, will effectively empower your solar system. With the improvement of the manufacturing technology, the internal resistance of 182mm PV Module will be reduced, which results in less heat loss during power generation. Thus, solar energy will be converted into electricity more efficiently. The advantage of 182mm PV Module will be even more obvious with higher irradiance of the sun and higher ambient temperature. Therefore, the new 182mm PV Module is a great choice for PV System.
Special features
- Construction with 182mm monocrystalline PERC cells
- With 10 multi-busbars, less resistance, and more stability
- Increased cell efficiency above 23.1%
- Less gaps between the solar cells and thinner busbar design
- More solid energy generation with the added copper and excellent performance in case of the low light
- Reduced installation area and costs
- 1 pcs integrated bypass diode
- Surface made of hardened ESG solar glass with weatherproof coating
- Unique, extra robust frame made of anodized aluminum
- 90 cm long solar cable; 2.5 mm² connected with MC-4 connectors
- TÜV certified according to standards IEC61215, IEC61730
- Plus tolerance guarantee (+ 3%), performance guarantee up to 10 years with 90% and up to 25 years with 80%
Electrical characteristics
| Product model | Eco Line ES80M |
|---|---|
| Item number | 1140080 |
| EAN Code | 4260558572817 |
| Cells | 34 (2×17) |
| Max. power (Pmax) | 80W |
| Max. voltage (Vmp) | 18.90V |
| Max. current (Imp) | 4.23A |
| Open circuit voltage (Voc) | 23.00V |
| Short circuit current (Isc) | 4.60A |
| Temperature coefficient of Voc | -0.36%/K |
| Temperature coefficient of Isc | 0.05%/K |
| Temperature coefficient of power | -0.44%/K |
| Normal operating cell temperature | 44+/-2? |
| Operating temperature | -40 ~ +85? |
| Max. System voltage | 1000VDC |
| Power tolerance | 0 ~ +3% |
| Junction Box | Wasserdicht IP65,1000VDC |
| Bypass Diodes | 1 pc |
| Module dimension | 1110 * 400 * 30 mm |
| Module weight | 5 kg |
- Measured at standard test conditions: irradiance 1,000W/ m², air mass 1.5 spectrum, temperature 25?.Electrical parameters may vary by-5% to +5%
