Description
Highlights of the solar case:
- Design for outdoor: thanks to the compact and light design, the solar case can be used anywhere. Ideal for leisure activities such as camping, hiking, climbing, cycling, RV, sailing boats, while traveling as well as for the garden and balcony etc.
- Waterproof and weatherproof: the entire kit including associated charge controllers, which are made of waterproof materials.
- Versatile power options: 8 options with powers from 12 W to 200W to adapt to different energy needs.
- Foldable stand: inserted foldable stands to make the solar cases of 100W, 150W and 200W easily and quickly with 30 degree angle to stand on the grand.
Special features:Solar case 80W (4 * 20W)
- Mobile, space-saving and extremely light solar case max. Power 80W from 4 highly efficient solar panels (20W)
- The bag is made of rain-repellent polyester fabric (1680D) and equipped with PWM charge controller (LS0512EU from EPEVER).
- 5m cable with Anderson connector makes installation easy and easy to set up, simply plug & play, charge the battery!
- Wide range of applications due to high flexibility ideal for RV, sailing boats, camping and tents, also for garden and balcony, all self-sufficient PV systems
Solar case 120W (6 * 20W)
- Mobile, space-saving and extremely light solar case with a max. Power 120W from 6 highly efficient solar panels (20W)
- The bag is made of rain-repellent polyester fabric (1680D) and equipped with IP67 MPPT charge controller (Tracer2606BP from EPEVER).
- 5m cable with Anderson connector creates ease of installation and easy assembly, simply plug & play, charge the battery!
- Wide range of uses due to high flexibility ideal for RV, sailing boats, camping and tents, also for garden and balcony, all self-sufficient PV systems

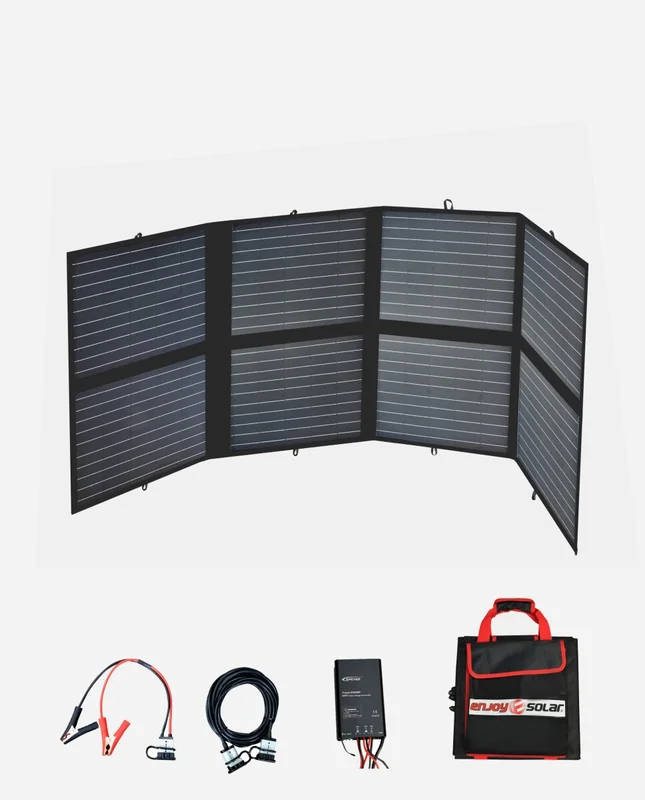

Solar case 200W (8 * 25W)
- Mobile, space-saving and extremely light solar case with a max. Power 200W from 8 highly efficient solar panels (25W)
- The bag is made of rain-repellent polyester fabric (1680D) and equipped with IP67 MPPT charge controller (Tracer 3906BP from EPEVER).
- 5m cable with Anderson connector creates ease of installation and easy assembly, simply plug & play, charge the battery!
- Wide range of uses due to high flexibility ideal for RV, sailing boats, camping and tents, also for garden and balcony, all self-sufficient PV systems
Technische Daten
Solar bag 80W/120W/200W
| Artikel number | 14100080 | 14100120 | 14124200 |
| EAN Code | 4260558572343 | 4260558572367 | 4260558572398 |
| Max.Power(Pm) | 80W | 120W | 200W |
| Max.Voltage(Vmp) | 18,4V | 18,5V | 20,3V |
| Max.Current(Imp) | 4,35A | 6,48A | 9,9A |
| Open circuit voltage(Voc) | 22,68V | 22,68V | 25,2V |
| Short-circuit current(Isc) | 4,53A | 7,1A | 10,23A |
| operating temperatur | -45°C ~ +85°C | -45°C ~ +85°C | -45°C ~ +85°C |
| Cells | 32 St. Mono | 72 St. Mono | 80 St. Mono |
| Max. Mains voltage | 1000VDC | 1000VDC | 1000VDC |
| tolerance | +3% | +3% | +3% |
| Weight | 2,85kg | 3,85kg | 5,5kg |
| Overall dimensions(folded) | 355*370*20mm | 365*370*60mm | 370*420*65mm |
| Overall dimensions(folded)Overall dimensions(folded)Overall dimensions(open) | 1500*35mm | 1120*730mm | 1710*730mm |
EVEPER Charge controller MPPT Tracer-BP Serie
| Model | Tracer 2606BP | Tracer 3906BP |
| System nominal voltage | 12/24VDC Auto | 12/24VDC Auto |
| Battery Input voltage range | 8,5~32VDC | 8,5~32VDC |
| Nominal charging power | 10A | 15A |
| Nennladeleistung | 130W/12V
260W/24V |
195W/12V
390W/24V |
| Max.PV open circuit voltage | 60 V (at minimum operating ambient temperature)
46 V (at 25 ° C ambient temperature) |
60 V (at minimum operating ambient temperature)
46 V (at 25 ° C ambient temperature) |
| MPP voltage range | (Battery voltage +2)～36V | (Battery voltage +2)～36V |
| Battery type | Lead-acid battery: Sealed (standard) / Gel / Flooded / User; Lithium battery: LiFePO4 / Li-NiCoMn / UserA | Lead-acid battery: Sealed (standard) / Gel / Flooded / User; Lithium battery: LiFePO4 / Li-NiCoMn / UserA |
| ownconsumption | ≤13mA(12V)
≤11,5mA(24V) |
≤13mA(12V)
≤11,5mA(24V) |
| Temperature compensation coefficient | -3mV/°C/2V | -3mV/°C/2V |
| communication | RS485 | RS485 |
| Working Environment tem. | -40°C ～ +60°C | -40°C ～ +60°C |
| Enclosure | IP67 | IP67 |
| Overall dimensions(mm) | 124*89*30mm | 150*93,5*32,7mm |
| Net weight | 0,54kg | 0,74kg |
| Mounting dimensions(mm) | 88*76mm | 120*83mm |
