Description
Highlights of the solar case:
- Design for outdoor: thanks to the compact and light design, the solar case can be used anywhere. Ideal for leisure activities such as camping, hiking, climbing, cycling, RV, sailing boats, while traveling as well as for the garden and balcony etc.
- Waterproof and weatherproof: the entire kit including associated charge controllers, which are made of waterproof materials.
- Versatile power options: 8 options with powers from 12 W to 200W to adapt to different energy needs.
- Foldable stand: inserted foldable stands to make the solar cases of 100W, 150W and 200W easily and quickly with 30 degree angle to stand on the grand.
Special features:Solar case 100W (2 * 50W) with 2 foldable stands
- Mobile, space-saving and extremely light solar case with a max. Power 100W from 2 highly efficient solar panels (50W)
- The bag is made of rain-repellent polyester fabric (1680D) and equipped with IP67 MPPT charge controller (Tracer 2606BP from EPEVER).
- 5m cable with Anderson connector creates ease of installation and easy assembly, simply plug & play, charge the battery!
- Wide range of uses due to high flexibility ideal for RV, sailing boats, camping and tents, also for garden and balcony, all self-sufficient PV systems
Solar case 150W (3 * 50W) with 3 foldable stands
- Mobile, space-saving and extremely light solar case with a max. Power 150W from 3 highly efficient solar panels (50W)
- The bag is made of rain-repellent polyester fabric (1680D) and equipped with IP67 MPPT charge controller (Tracer 2606BP from EPEVER).
- 5m cable with Anderson connector creates ease of installation and easy assembly, simply plug & play, charge the battery!
- Wide range of uses due to high flexibility ideal for mobile homes, sailing boats, camping and tents, also for garden and balcony, all self-sufficient PV systems

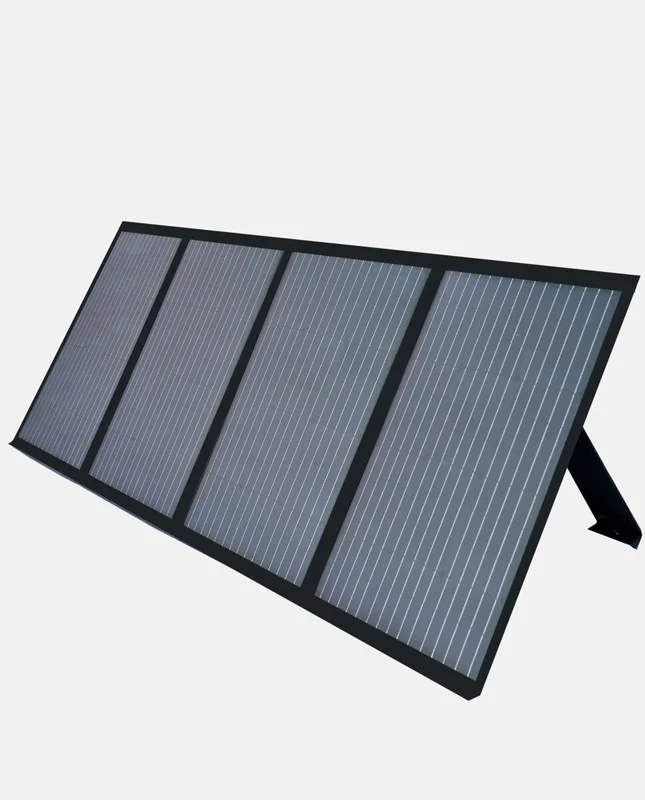

Solar case 200W (4 * 50W) with 4 foldable stands
- Mobile, space-saving and extremely light solar case with a max. Power 200W from 4 highly efficient solar panels (50W)
- The bag is made of rain-repellent polyester fabric (1680D) and equipped with IP67 MPPT charge controller (Tracer3906BP from EPEVER).
- 5m cable with Anderson connector creates ease of installation and easy assembly, simply plug & play, charge the battery!
- Wide range of uses due to high flexibility ideal for mobile homes, sailing boats, camping and tents, also for garden and balcony, all self-sufficient PV systems
EVEPER charge controller MPPT Tracer-BP series Features:
- Advanced MPPT technology (Maximum Power Point Tracking) with tracking e-efficiency not less than 99%
- Apply to lead-acid battery and lithium battery
- Self-activating lithium battery and low temperature protection function
- Maximum conversion efficiency of 98%
- PV power limitation function
- Monitoring and setting parameters via mobile APP, PC monitor setting software with RS485 communication interface
- Connection of the IOT module (Internet of Things) and the cloud server monitoring software to realize remote monitoring of the multi-machine system
- IP67 waterproof
Technical specifications:
| Article number | 14100100 | 14100150 | 14114200 |
|---|---|---|---|
| EAN | 4260558572350 | 4260558572374 | 4260558572381 |
| Max.power(Pm) | 100W | 150W | 200W |
| Max.voltage(Vmp) | 16,8V | 16,8V | 16,8V |
| Max.current(Imp) | 6A | 8,93A | 11,91A |
| Open circuit voltage(Voc) | 20,79V | 20,79V | 20,79V |
| Short circuit current(Isc) | 6,22A | 9,26A | 12,34A |
| Operating temperature | -45°C ~ +85°C | -45°C ~ +85°C | -45°C ~ +85°C |
| Cells | 66 St. Mono | 99 St. Mono | 132 St. Mono |
| Max. Mains voltage | 1000VDC | 1000VDC | 1000VDC |
| Tolerance | +3% | +3% | +3% |
| Weight | 3,45kg | 6,1kg | 8,25kg |
| Total mass(folded) | 530*680*20mm | 530*680*20mm | 530*680*30mm |
| Total mass(open) | 1060*680mm | 1600*680mm | 2140*680mm |
| MPPT Tracer BP:2026BP, 3906BP | ||
|---|---|---|
| Model | Tracer 2606BP | Tracer 3906BP |
| Nominal voltage of the system | 12/24VDC Auto | 12/24VDC Auto |
| Battery input voltage range | 8,5~32VDC | 8,5~32VDC |
| Rated charge/discharge current | 10A | 15A |
| Rated charging power | 130W/12V
260W/24V |
195W/12V
390W/24V |
| Max. PV open-circuit voltage | 60 V (at minimum operating ambient temperature)
46 V (at 25°C ambient temperature) |
60 V (at minimum operating ambient temperature)
46 V (at 25°C ambient temperature) |
| MPP voltage range | (battery voltage+2)～36V | (battery voltage+2)～36V |
| Battery type | Lead-acid battery: Sealed (standard) / Gel / Flooded / User; Lithium battery: LiFePO4 / Li-NiCoMn / User | Lead-acid battery: Sealed (standard) / Gel / Flooded / User; Lithium battery: LiFePO4 / Li-NiCoMn / User |
| Self-consumption | ≤13mA(12V)
≤11,5mA(24V) |
≤13mA(12V)
≤11,5mA(24V) |
| Temperature compensation coefficient | -3mV/℃/2V | -3mV/℃/2V |
| Communication | RS485 | RS485 |
| Working environment Tem. | -40°C ~ +60°C | -40°C ~ +60°C |
| Enclosure | IP67 | IP67 |
| Overall dimension(mm) | 124*89*30mm | 150*93,5*32,7mm |
| Net weight | 0,54kg | 0,74kg |
| Mounting dimension(mm) | 88*76mm | 120*83mm |
