Description

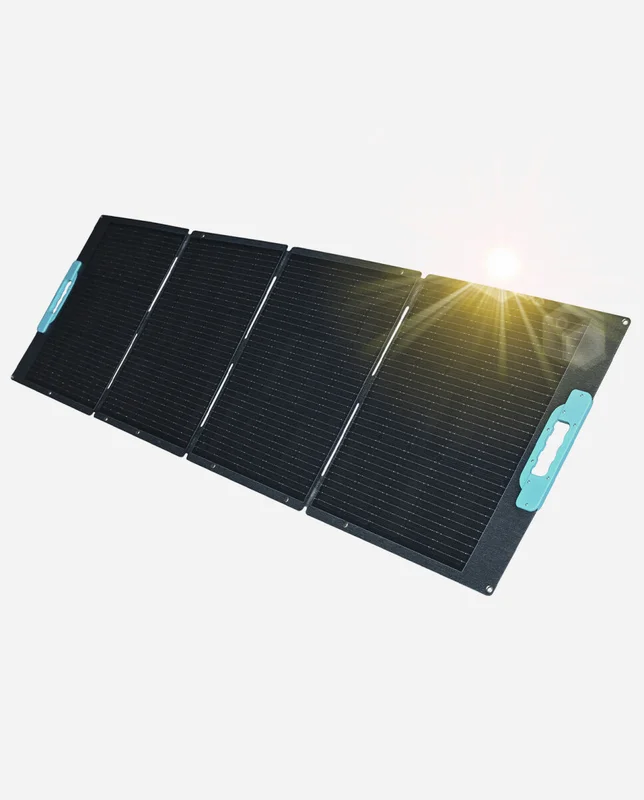

enjoy solar® Helios Serie is a high-efficiency, foldable solar panel that comes in a stylish and convenient carrying bag with handles. It is suitable for off-grid scenarios such as at home, caravans, commercial vehicles, boats, camping, and outdoor emergency situations.Delivery:
- 1 x Foldable solar panel 200W/12V
- 1 x 3m solar cable with MC4 connectors
- 1 x 0.5m connection cable for solar panel to charge controller
- 1 x 0.5m connection cable for charge controller to battery (with crocodile clips)
- 1 x Carrying bag
- 1 x Datasheet
Electrical characteristics:
| Product model | Flex Line ES200M144 |
|---|---|
| Item number | 1470200 |
| EAN Code | 4260558573883 |
| Solar cell | Monokristallin (182 mm) |
| Maximum power (Pmax) | 200W (4x50W) |
| Voltage at Pmax (Vmp) | 17.4V |
| Current at Pmax (Imp) | 11.50A |
| Leerlaufspannung (Voc) | 20.4V |
| Short-circuit current (Isc) | 12.07A |
| Power temperature coefficient | -0.35%/℃ |
| Voltage temperature coefficient | -0.275%/℃ |
| Current temperature coefficient | 0.045%/℃ |
| Operating temperature | -10℃ ~ 60℃ |
| Maximum system voltage | 200VDC (IEC) |
| Output power tolerance | 0 ~ ±5% |
| Cells efficiency (%) | 22.7% |
| Dimensions (unfold) | 2232 x 610 x 3 mm |
| Dimensions (fold) | 610 x 590 x 50 mm |
| Net weight | 6.54kg |
| Number of cells and connection | 120 (3 x 10 x 4) |
| Waterproof junction box | IP67 |
