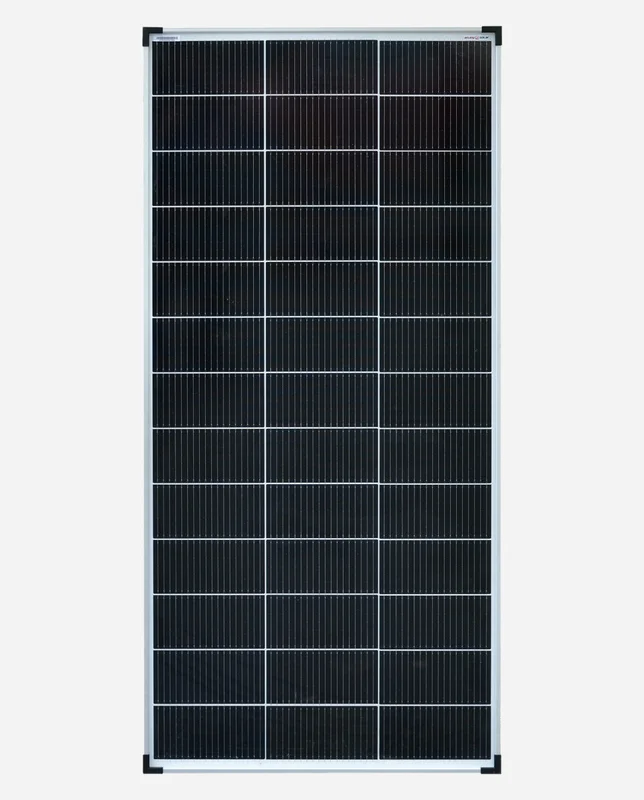

TOPCon Technology – The Next Generation of Modern Solar Modules
Our TOPCon solar modules (Tunnel Oxide Passivated Contact) represent state-of-the-art cell technology, high energy efficiency, and long-term reliable performance. This innovative advancement of the proven PERC technology enables higher energy yields and improved performance under a wide range of weather conditions.
Thanks to the optimized cell structure, TOPCon modules deliver higher efficiency and lower power degradation throughout their entire service life. This allows more solar energy to be generated on the same module area – ideal for applications with limited installation space or increased energy demands.
TOPCon modules perform particularly well at high temperatures and under diffuse light conditions, such as on cloudy days or during morning and evening hours, providing more stable energy yields and enhanced overall Performance.
Advantages of TOPCon Technology
- Higher module efficiency and optimized use of installation area
- Improved performance under high temperatures
- More stable energy yield in low-light conditions
- Lower degradation and enhanced long-term reliability
- Advanced cell technology for maximum energy efficiency
- Ideal for demanding applications with high energy requirements
Special features
- TOPCon cell technology – Advanced high-performance cells with improved efficiency and optimized energy yield
- Up to 25.5% efficiency – significantly higher than conventional solar modules
- Excellent low-light performance – high efficiency even under cloudy conditions
- Optimized temperature coefficient – higher power output at elevated temperatures
- Durable & resilient – engineered for the harshest environmental conditions
- ESG solar glass – tempered and coated for superior weather resistance
- Reinforced aluminum Frame – stable, corrosion-resistant, and exceptionally robust
- 2 integrated bypass diodes – reduces power loss caused by partial shading
- IP65 waterproof rating – designed to withstand wind loads up to 2,400 Pa and snow loads up to 5,400 Pa
- Plug & Play cabling – 90 cm 4.0 mm² solar cable with MC4 connectors
- TÜV-certified – compliant with IEC 61215 & IEC 61730 standards for quality and safety
- Performance warranty – +3% power tolerance, 90% output after 10 years, and 80% output after 25 years
Technical data
| Manufacturer model | Eco Line ES220M |
|---|---|
| EAN Code | 4260558576044 |
| Article number | 1100220 |
| Cells | 39 PCs. (3*13) |
| Max. Power (Pm) | 220 W * |
| Max. Voltage (Vmp) | 23.60 V |
| Max. Current (Imp) | 9.32 A |
| Open circuit voltage (Voc) | 27.30 V |
| Short circuit current (Isc) | 10.13A |
| Operating temperature | -40 ° C to +85 ° C |
| Maximum System Voltage | 1000 V DC |
| Power Tolerance | 0~ + 3% |
| Net Weight | 10.2 kg |
| Dimensions | 1480 * 670 * 30 mm |
- Values according to STC conditions (E = 1000 W / m², Tc = 25 ° C, AM = 1.5)
