Description

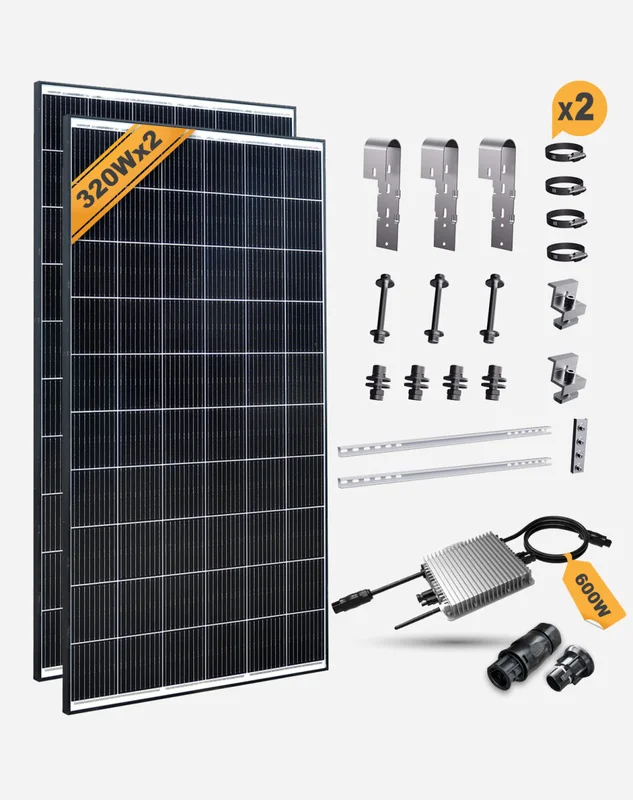

Eco-friendly:With our Balcony Power Station Complete Set, you can actively contribute to environmental protection by generating solar energy and reducing your carbon footprint. The high-quality solar panel from enjoy solar and intelligent micro inverter from Deye ensure reliable solar power generation on your balcony.User-friendly:Plug-and-play system allows quick and easy installation that anyone can do without any special knowledge. It is ideally suited for balcony power station and mini solar power systemCost-friendly:By using solar energy, you can reduce your electricity bill and save money in the long run. Start enjoying solar energy immediately without any additional installation costs!
enjoy solar PERC Monocrystalline 320W Solar Panel
Special features:
- High quality A-grade solar cells, higher efficiency thanks to the 9-busbar (9BB) even in low light conditions.
- Tempered ESG solar glass surface with weatherproof coating
- Corrosion resistant aluminum frame for extended outdoor use with pre-drilled mounting holes
- IP68 junction box with 90cm long 4mm² double insulated solar cable and MC4 connector
- 3 bypass diode – minimized power loss in shaded conditions
- SGS-TÜV Saar tested according to valid standards
- Guarantee of plus tolerance (0~+3%)
- Power guarantee up to 10 years with 90% and up to 25 years with 80%
Technical data (solar module)
| Manufacturer Model | Power Line ES 3M120-320 |
|---|---|
| EAN Code | 4260558572589 |
| item number | 119B320 |
| Max. Power (Pm) | 320W* |
| Max. Voltage (Vmp) | 33.41V |
| Max. Current (Imp) | 9.58A |
| Open Circuit Voltage (Voc) | 40.88V |
| Short Circuit Current (Isc) | 10.15A |
| Operating Temperature | -40°C ~ +85°C |
| Max. Mains voltage | 1000VDC |
| Tolerance | +3% |
| Weight | 18,5kg |
| Dimension | 1689* 996* 35mm |
*Values according to STC conditions (E=1000 W/sq.m, Tc = 25 °C, AM = 1.5 )
Deye Micro Inverter SUN600G3-EU-230
Special features
- Peak inverter efficiency up to 96.5%
- MPP tracking for each solar module, high efficiency up to 99%
- Operating temperature range from -40°C to +65°C
- Integrated WIFI module, making it convenient to monitor with smartphone or PC from any location
- Dustproof and waterproof according to IP67
- High safety due to integrated protection functions
- Tested according to VDE-AR-N 4105:2018-11
- Long service life, manufacturer’s warranty of 10 years
Technical data
| Modell | Sun600G3-Eu-230 |
|---|---|
| Eingangsdaten(DC) | |
| Empfohlene Eingangsleistung | 210-800W |
| MTTP Spannungsbereich | 25-55V |
| Betriebs-DC-Spannungsbereich | 20-60V |
| Maximale Eingangsstrom | 13A x 2 |
| Maximale Eingangsspannung | 60V |
| Ausgangsdaten(AC) | |
| Nennausgangsleistung | 600W |
| Nennausgangsspannung/Bereich | 230V/0.85Un-1.1Un |
| Nennausgangsstrom | 2.6/2.7A |
| Maximale Einheiten Pro Zweig | 8 |
| Wirkungsgrad | |
| Statischer MTTP-Wirkungsgrad | 99% |
| Spitzenwirkungsgrad | 96.5% |
| Mechanische Daten | |
| Gewicht(kg) | 3.15 |
| Abmessungen(BxHxT mm) | 212B x 230H x 40T(Ohne Halterung und Kabel) |
| IP-Schutzklasse | IP67 |
| Betriebstemperaturbereich | -40°C bis +65°C |
| Merkmale | |
| Konformität | EN50549,VDE0126,VDE4105,IEC62109,CE,INMETRO |
| Garantie | 10 Jahre |
Aluminum PV balcony bracket set (vertical)
Special features:
- Specially designed for balcony power plant
- For vertical mounting of solar modules and micro-inverters
- Perfect for mounting on round and square balcony railings
- Aluminum construction and stainless steel – safe and durable mounting
- Suitable for panels with the length up to 1700mm
- Includes all mounting screws
- Withstands a maximum wind speed of 20m/s
- Hose clamp Application area: balcony railings diameter range 27-51mm
| Item number | 5410006 |
|---|---|
| EAN code | 4260558574040 |
| Delivery: | |
| 2 x Alu-rail | |
| 3 x J-Bracket | |
| 1 x Rail connector | |
| 2 x End clamp | |
| 4 x Hose clamp | |
| 4 x M10*25 Hexagonal Bolt | |
| 4 x M8*25 Hexagonal Bolt | |
| 3 x M8*90 Hexagonal Bolt | |
| Net Weight: | 3.3KG |
| Item Packaging Weight: | 3.6KG |
| Packaging Dimension: | 1150x90x70 mm |
