Description

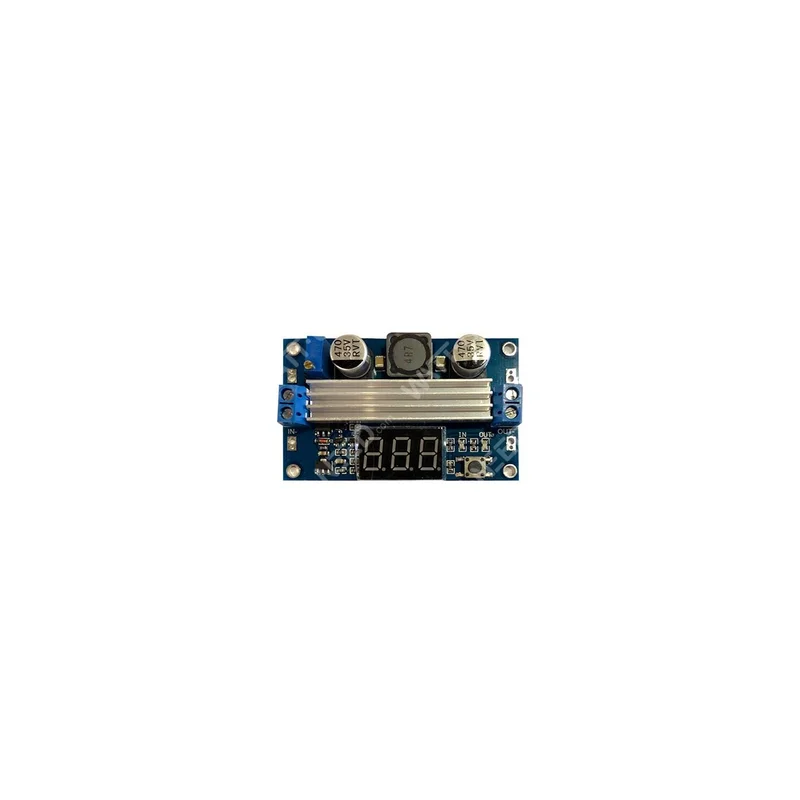

“ Converter step up 35V „
Features
- Size: 67.5mm x 41.5mm
- Input Voltage: DC 3~35V
- Input current: 9A (Max.)
- Output Voltage: 3.5V~35V
- Output Current: 6A (Max.)
- Output power: 65W, 100W
- Output Ripple: 40mV (TYP)
- Display Color: Red
- Voltage Meter Error: ± 0.1V
- Measure Range: 4~40V
- Conversion efficiency: 96% (Max.)
- A key switch input and output voltage
Conversion efficiency measured(Voltmeter off):
| Input voltage | Output voltage | Output current | Output power | Efficiency |
| 5.0V | 12V | 1A | 12W | 94.1% |
| 5.0V | 12V | 2A | 24W | 93.1% |
| 7.4V | 12V | 1A | 12W | 95.4% |
| 7.4V | 12V | 2A | 24W | 94.8% |
| 7.4V | 18V | 1A | 18W | 94.5% |
| 7.4V | 18V | 2A | 36W | 94.2% |
| 7.4V | 18V | 3A | 54W | 93.8% |
| 12V | 18V | 1A | 18W | 96.1% |
| 12V | 18V | 2A | 36W | 95.5% |
| 12V | 18V | 3A | 54W | 94.3% |
| 18V | 24V | 1A | 24W | 96.5% |
| 18V | 24V | 2A | 48W | 96.2% |
| 18V | 24V | 3A | 72W | 95.7% |
| 24v | 32v | 3.5A | 112W | 96.4% |
