Description

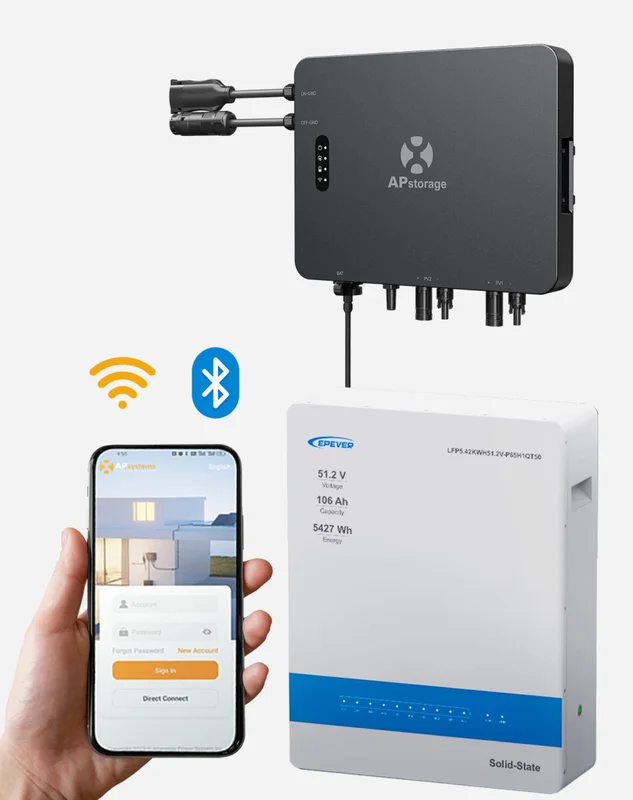

APsystems® EZHI Hybrid Micro-Inverter
State-of-the-Art Technology
The EZHI is a compact energy storage solution specifically designed for balcony power plants and DIY systems. The EZHI features two input channels with independent MPPTs, offering high input current and high output power to meet the demands of modern high-performance modules.
The main advantage of this system is the ability to store excess energy generated during the day, optimizing energy efficiency, maximizing self-consumption, and sustainably reducing electricity costs.
Outstanding Performance
The EZHI uses advanced GaN technology, enabling continuous fast charging up to 40A. Thanks to its fanless design, it operates ultra-quietly, while the transfer time to UPS level with less than 10ms ensures uninterrupted power supply. Additionally, the unit offers a maximum input power of 2 × 600W.
Highest Safety
A key highlight of the EZHI is its robust IP65 protection rating, ensuring reliable protection against dust and water. With a battery input voltage of 51.2V, optimal operational performance is guaranteed. The intelligent charging technology extends the battery lifespan, while the high- and low-voltage isolation topology contributes to maximum operational safety.
Intelligent Energy Management
The EZHI offers an intelligent 24-hour energy management system that efficiently controls and monitors energy flows. Through the EMA operating and maintenance platform, system performance and operational status can be analyzed in real-time. The quick and easy configuration via the app ensures user-friendly setup and optimized maintenance.
Versatility and Flexibility
TThe EZHI stands out with its highest flexibility, offering optimal protection against environmental factors thanks to its IP65 rating. It is compatible with various battery brands and supports capacity expansion through multiple battery packs. Additionally, it enables AC coupling in a balcony PV-System with micro-inverters. The modular installation of split batteries allows for even more customized adjustments to different deployment scenarios.
EZHI Application Illustration
Packing List:
Special features:
- Configured as a balcony power station
- Cost-effective compared to conventional power stations
- AC-Coupling with other micro-inverters
- Capacity expansion through the use of multiple battery packs
- Maximum continuous output power (On-Grid connection): 800W
- Maximum continuous output power (Off-Grid and battery connection): 1200W
- Supports two PV modules with an input power of 430-900Wp
- Maximum reliability – IP65 protection class (dustproof and waterproof)
- Integrated Wi-Fi and Bluetooth module
- VDE relay integrated
- Standard 12-year warranty
Technical Specifications
| Model | EZHI-EMEA |
| PV Input Data (DC) | |
| Maximum input power | 600W×2 |
| Recommended Input Power (STC)(1) | 430Wp-900Wp+ |
| Operating voltage range | 12V-60V |
| Maximum input voltage | 60V |
| MPPT voltage range | 12V-48V |
| Start-up voltage | 18V |
| Maximum continuous input current | 17A x 2 |
| Isc PV | 25A x 2 |
| AC Input and Output (on-grid Port) | |
| Grid type | Single-phase |
| Nominal AC voltage(2) | 230V |
| Nominal AC frequency(2) | 50Hz |
| Default output apparent power(3) | 800VA |
| Maximum continuous output power | 1200VA |
| Maximum continuous output current(4) | 5.22A |
| Maximum continuous input power | 1200VA |
| Maximum continuous input current(4) | 5.22A |
| Power factor range | >0.99(+/- 0.8adj.) |
| EPS Switch Time | <10ms |
| AC Input and Output (off-grid Port) | |
| Grid type | Single-phase |
| Nominal AC voltage | 230V |
| Nominal AC frequency | 50Hz |
| Maximum continuous output power | 1200VA |
| Peak output apparent power | 1800VA, 10s |
| Maximum continuous output current | 5.22A |
| Maximum continuous input power | 2400VA |
| Maximum continuous input current | 10.43A |
| Battery Ratings (Battery Port) | |
| Battery voltage range | 40-60VDC |
| Nominal battery voltage | 51.2V |
| Communication Ports | CAN |
| Maximum Continuous Discharge Power | 1200VA |
| Peak Discharge Power | 1800VA,10s |
| Maximum discharge current | 27A |
| Maximum charge current | 40A |
| General Specifications | |
| Dimensions W/H/D | 351mm×269mm×47mm |
| Weight | 8 KG |
| Maximum Efficiency | 96.2% |
| Operating Ambient Temperature Range | -40℃-65℃ |
| Storage Temperature Range | -40℃-85℃ |
| Ingress Protection | IP67 |
| Relative Humidity | 10%-90% |
| DC Connector Type | QC4.3 Connector With Lock |
| Cooling | Natural Convection-No Fans |
| Maximum Altitude | <2000m |
| Overvoltage Category | OVC II For PV and Battery Input Circuit, OVC III For Mains Circuit |
| Featurese | |
| Communication | Built-in Wi-Fi and Bluetooth |
| Energy Management | AP EasyPower APP |
| Warranty | 12 Years Standard |
| Energy Management | AP EasyPower APP* |
| Safety, EMC & Grid Compliances | EN 62109-1/-2; EN 62477-1; EN IEC 61000-6-1/-2/-3/-4; EN 62920; VDE-AR-N 4105;EN303 645 |
(1)Two modules with STC less than 450 W can be connected in parallel for each input channel.
(2)The nominal voltage/frequency range may vary based on local requirements.
(3)It is the ratio of max. output apparent power to nominal AC voltage.
(4) The maximum power can be utilized for charging from both PV and AC port.
EPEVER® Lithium Battery LiFePO4 Batteries 51.2V 106Ah – integrated BMS, A-Grade LiFePO4-Cells, Wall-mountable (LED)
Special Features:
- A-Grade LiFePO4 cells with cell balancing function
- Integrated BMS (Battery Management System) with extensive protection features
- Seamless communication via RS485, CAN, and RS232 interfaces
- Connection cable (approx. 1250mm): One end equipped with a plug compatible with EZHI; the other end features positive and negative terminals along with an RS232 interface (RJ45 connector).
- Over 5000 cycles at 80% DOD under standard conditions (25 °C, 0.5 C)
- Up to three times more charge cycles compared to conventional lead-acid batteries
- Robust case with excellent heat dissipation and enhanced safety
- Up to 8 units can be connected in parallel.
- Maximum discharge current: 100A for 30 minutes
- Nominal voltage: 51.2V
- Battery terminal clamp: Quick-Connector Terminal
- IP protection class: IP65
- Certifications: UN38.3, MSDS, IEC62619, ROHS
- Warranty up to 3 years
Technical Specifications
| Manufacturer model | LFP5.42KWH51.2V-P65H1QT50 |
| EAN Code | 4260558576327 |
| Article Number | 4951542H1-EPEVER |
| Rated Voltage | 51.2V |
| Rated Capacity(AH) | 106Ah |
| Rated Energy(WH) | 5427Wh |
| Pack Mode | 16S2P |
| Continuous Discharge Current(A) | 50A |
| Charge Cut-off Voltage(V) | 57.6V |
| Discharge Cut-off Voltage(V) | 41.6V |
| Max.Charge Current(A) | 50A |
| Max.Discharge Current(A) | 100A |
| Peak Discharge Current(A) | 120A@2S |
| Recommend Discharge Current(A) | 50A |
| Recommend Discharge Deapth(%) | 80% |
| Cycle Life | >5000 cycles (25 °C, 0.5 °C) 80 % DOD |
| Communication | CAN RS485 RS232 |
| Display | LED |
| Operating Temperature | Discharge: -20°C ~ +60°C, Charge: 0°C ~ +50°C |
| Storage Temperature(℃) | 5℃ ~ +35℃ |
| Recommend Storage Humidity | 60% ± 20% RH |
| Battery terminal clamp | Quick-connector |
| Dimensions(L*B*H) | 470 * 190 * 600mm |
| Weight(kg) | 47.6 ± 0.5 |
| Certificate | UN38.3, MSDS, IEC62619, ROHS |
| Protection Class | IP65 |
